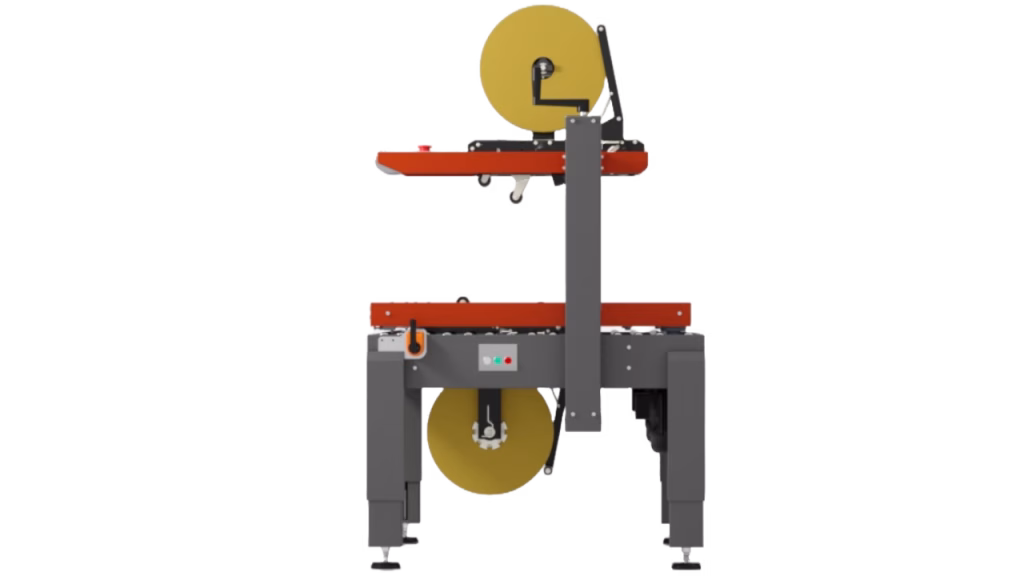

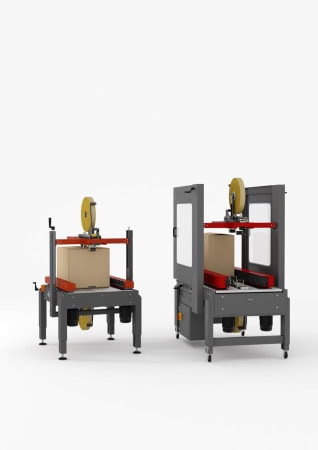

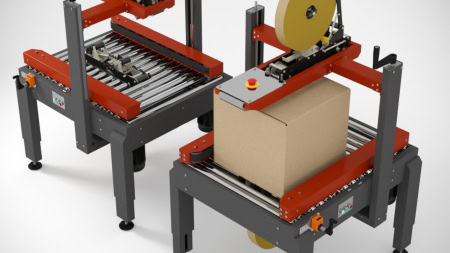

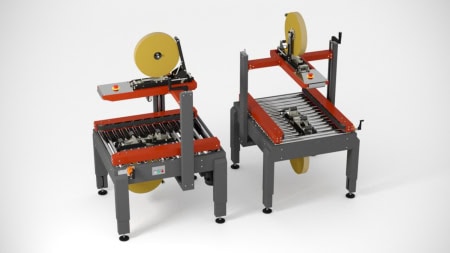

Series 15 Semi-Automatic Case Sealer
This machine seals the top and bottom of boxes with adhesive tape or gummed paper. It is semi-automatic meaning boxes are manually fed into the machine and the sizing adjustments are made using handwheels.
22-23m/min
Belt Speed
Tape or Gummed Paper
Sealing Technology
Semi-Automatic
Operation Type
Series 15 Semi-Automatic Case Sealer
Machine Specifications
Explore the detailed specifications of our cutting-edge machinery.
Main Features
Options
Technical Specification
Packaging Types
Industries
Top and bottom seal
Handwheels for quick and easy case size change
Quick and easy seal replacement
Adjustable working height
Drags without marking the box
Different versions according to box size, sealing technology and drag
CE Certified
Bottom only sealing
Driven feed and discharge conveyor
Box coding
Box labelling
Adjustable flexible rolling conveyor
Stainless Steel
38mm & 75mm taping heads
3 flap closing guide
Pneumatic model
Drive Belts:
Top and bottom or Lateral
Belt Height:
50 mm
Tape Width:
38/50/75 mm
Minimum Case Size (configuration dependent, LxWxH):
120x110x115 mm
Maximum Case Size (configuration dependent, LxWxH):
NAx1000x1000 mm
Working Height:
520-900 mm
Weight (Configuration dependent):
153-290 Kg
Dimensions (Configuration dependent, LxWxH):
1637x754x1400mm
Electrical Power:
230V II+T or 230/400V III+T or 230/400V III+N+T
Electrical Consumption:
0,40-1 kW/h
Pneumatic Pressure (configuration dependent)
6 bar
Air consumption (configuration dependent):
0.2L/box
Cardboard boxes
Gummed paper
Tape
Chemical
Food
Pharmaceutical
Personal Care
Automotive
Cosmetic
Drinks
Edible Oils
Home Care
