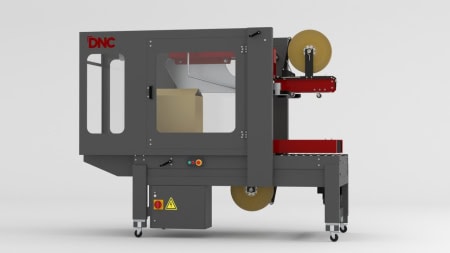

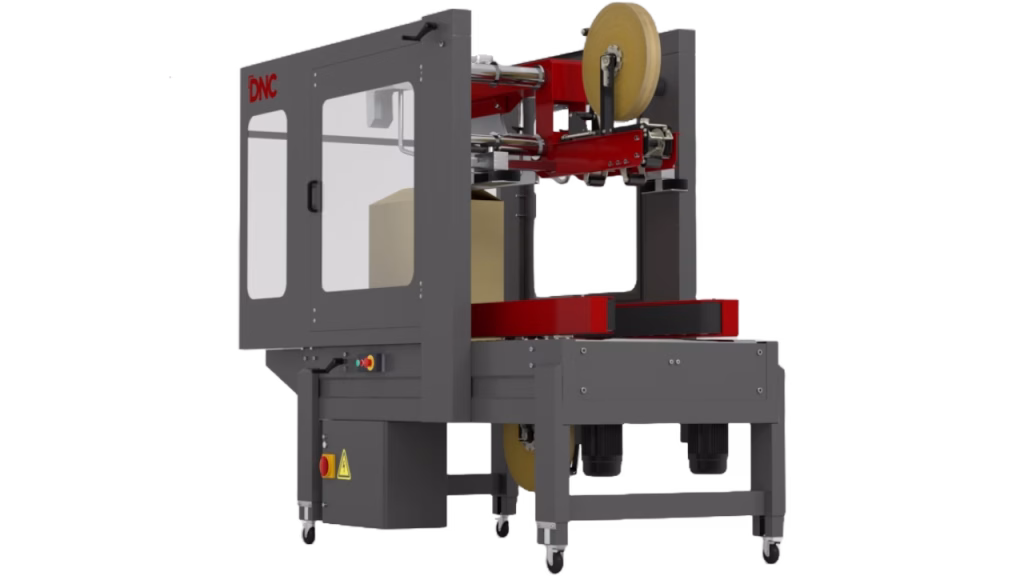

Automatic Case Sealer – Series 35

Equipment for integrating into automatic lines that closes the upper flaps of the box and seals the lower and upper faces with adhesive tape or hot melt. Quickly manually adjustable to work with boxes of different dimensions.

fast time icon
L35CS: 23m/min

Belt speed

Automatic case sealer machine sealing a cardboard box

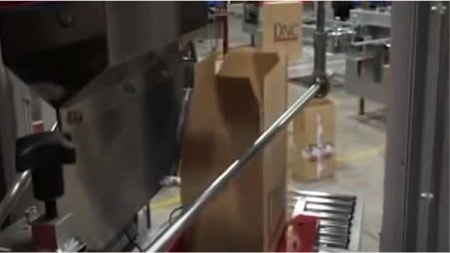

Automatic case sealer machine sealing boxes

Talk to Us!

Contact Our Technical Support Team

Automatic Case Sealer – Series 35

Machine Specifications

explore the detailed specifications of our cutting-edge machinery.

Main Features
Options
Technical Specification
Packaging Types
Industries

Top and Bottom Seal

Quick and easy seal replacement

Adjustable working height

Drags without marking the box

Different versions according to box size and type of closure.

Driven feed and discharge conveyor

Box coding

Box Labelling

Adjustable flexible rolling conveyor

Weight:

300KG

Dimensions:

L 1960 mm W 900 mm H 1990 mm

Drive belts:

Lateral

Belt height:

50 mm

Tape width:

50 mm

Working height:

680-880 mm

Electrical power:

230V II+T

Electrical consumption:

0,45 kW/h

Pneumatic pressure:

6 bar

Air consumption:

0,33 l/case

Shipping Boxes, Cartons, Tape, Gummed Paper

Chemical

Food & Drink

Pharmaceutical

Personal Care
