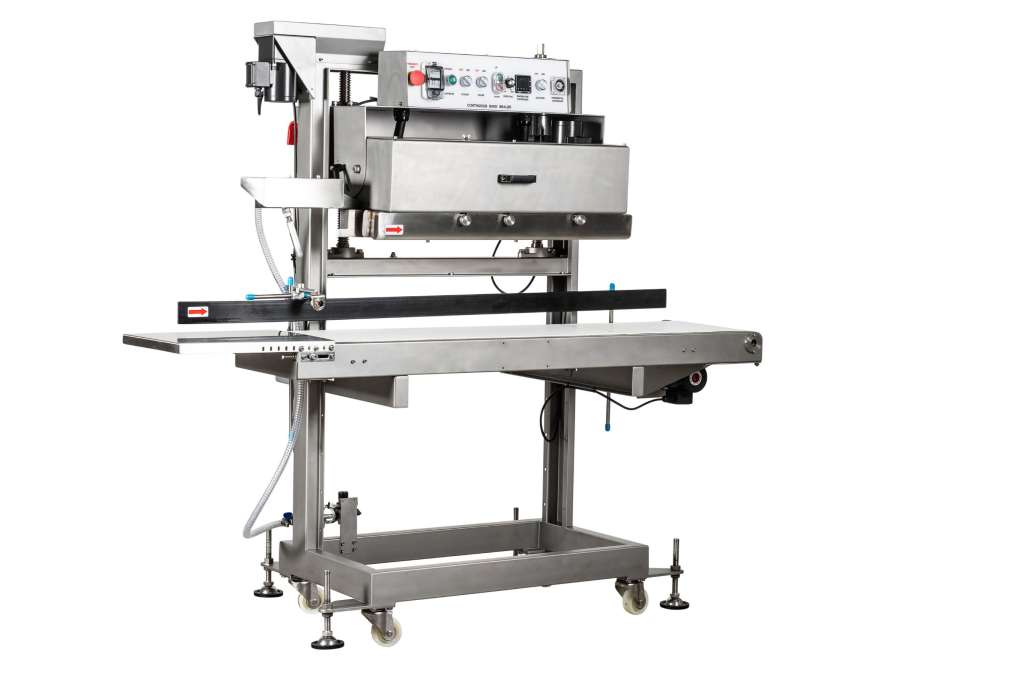

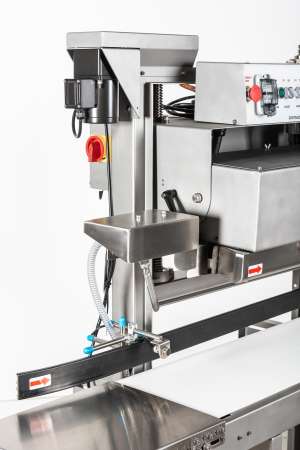

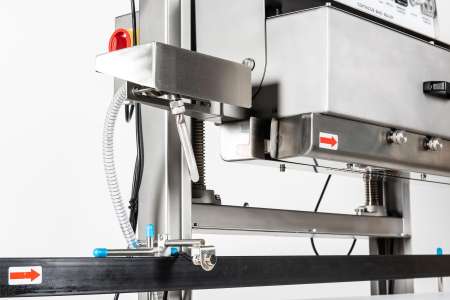

Vertical Gas Flush Band Sealer
This SV30-GF is a semi-automatic vertical continuous band sealer. An operator feeds bags or pouches into the conveyor mechanism which seals the product using heat and pressure. This model is specifically for products that need gas flushing during the sealing process and can flush bags with CO2, N, mixed gases etc.
12m/min
Maximum Speed
Semi-Automatic
Operation Type
PP, PE, PA Aluminium Foil, Polystyrene Paper etc.
Packaging Suitability
Most Products
Product Suitability
0-3999°C
Temperature Range
Vertical Gas Flush Band Sealer
Machine Specifications
Explore the detailed specifications of our cutting-edge machinery.
Main Features
Options
Technical Specification
Packaging Types
Industries
Left to right operation as standard
Right to left built to order
Gas Flushing e.g. CO2, N, mixed gases
AISI 304 stainless steel construction
400c temp controller with quick cool down mode
Tiltable conveyor up to 15 degrees
Ideal for rolling or moving products
Intergrated conveyor
Variable speed control (conveyor & sealer synchronised speeds)
Stainless steel guarding / guide strip on conveyor belt to guarantee belt alignment
Adjustable infeed stainless steel bag rest table
Lockable casters and height adjustable feet
Fully CE compliant
Right to left infeed direction
Left to right infeed direction
Gas Flush (N, CO2, Mixed gases etc.)
Dual Heater
Seal Depth (5,10,15,20 mm)
Dimensions (LxWxH):
1290x600x1220 mm
Conveyor Belt Size (LxW):
1100x200 mm
Electrical:
100 to 230 vac/1ph/50/60hz
Bag Thickness:
<0.7mm
Sealing Height:
750mm - 850mm
Sealing Speed:
8m per min (fixed speed)
Temperature Range:
0-399 degrees celsius
Sealing Depth:
10mm (5/15/20mm available)
Conveyor Loading Weight:
15 KG
Pouches, Bags, Doypacks
PP, PE, PA Aluminium Foil, Polystyrene Paper and more.
Food
Automotive
Chemical
Cosmetic
Edible Oils
Home Care
Personal Care
Pharmaceutical
