Heavy Duty Vertical Band Sealer

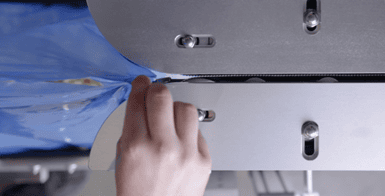

This SV30USD-HD is a semi-automatic machine where the operator feeds a bag or pouch into the continuous band mechanism where they are moved along and sealed with heat and pressure. This is the heavy duty version of the SV30USD machine; it can handle bags and pouches of much greater size and weight.
12m/min
Maximum Speed
Semi-Automatic
Operation Type
PP, PE, PA Aluminium Foil, Polystyrene Paper etc.
Packaging Suitability
All Products
Product Suitability
0-399°C
Temperature Range
Heavy Duty Vertical Band Sealer
Machine Specifications
Explore the detailed specifications of our cutting-edge machinery.
Main Features
Options
Technical Specification
Packaging Types
Industries
Left to right operation as standard (right to left built to order)
AISI 304 stainless steel construction
Twin 15mm Seal width as standard
88mm deep throat sealing head (for handled bags or pouches)
Motorised height adjustment – up & down push button control
Independent conveyor for bags up to 25kg / 550mm
Variable temperature control (up to 400’C with quick cool down mode)
Variable speed control (conveyor & sealer synchronized speeds)
Stainless steel protection plates running through sealer prevents contaminants falling on seal area
Guide strip on conveyor belt to guarantee belt alignment
Adjustable rear and front bag side guides with bag roller rest
Lockable casters and height adjustable feet
Fully CE compliant
Right to left infeed direction
Left to right infeed direction
400 mm wide conveyor
Dual Heater
Dimension (LxWxH):
1300x550x1750 mm
Conveyor Belt Size:
2500x300 mm
Sealing Speed:
0-12m per min (variable speed)
Seal Depth:
5/10/15/20 mm
Material:
Stainless Steel
Electrical:
220V
Infeed Direction:
Left to right as standard
Temperature Range:
0-399°C
Conveyor Loading Weight:
<50kg
Pouches, Bags, Doypacks
PP, PE, PA Aluminium Foil, Polystyrene Paper etc.
Food
Pharmaceutical
Automotive
Chemical
Cosmetic
Edible Oils
Personal Care
Home Care
