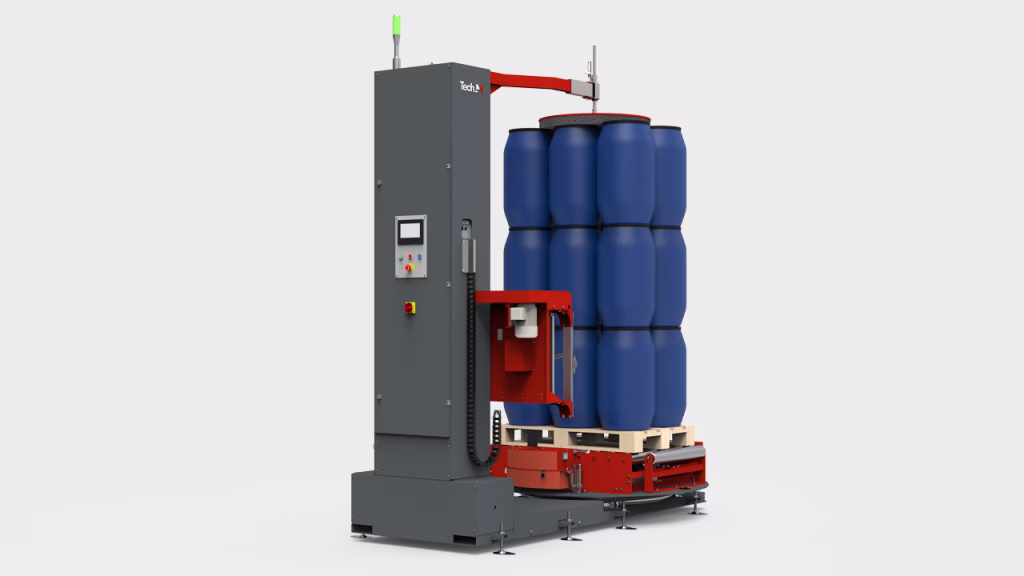

LINE Automatic Stretch Wrapper
This is a customisable, turntable stretch-wrapping machine for integration into automatic lines. Designed to work with any type of load and with powered rollers for automatic presentation this machine is fully automatic and versatile for all industries.
60 Pallets/hr
Maximum Production
Automatic
Operation Type
LINE Automatic Stretch Wrapper
Machine Specifications
Explore the detailed specifications of our cutting-edge machinery.
Main Features
Options
Technical Specification
Industries
Economic film use
Pre-stretch options
Touch screen configuration with easy graphics
Heat-sealed film cutting
Adaptable to any pallet size and height
Powered top platen to stabilise load
Top film sheet dispenser
Blade film cutting
Safety fencing
Film stringer
Raised legs on base
Stainless steel version
RFID label reader
Jumbo reels
Wrapper height increased up to 3400 mm
Platform diameter increased up to 2500 mm
Maximum load weight increased to 3000 Kg
Pre-stretching Relation:
100/150/250%
Maximum Film Width:
500 mm
Maximum Reel Diameter:
260 mm
Turning device:
Platform
Turning speed:
21 RPM
Platform Diameter:
1900 mm
Conveyor Width:
940/1340 mm
Load maximum height:
2400 mm
Load maximum weight:
2000 KG
Pallet maximum sizes:
1200 x 1200 mm
Weight:
900 Kg
Dimensions (without additional accessories, LxWxH):
2860x1900x3000 mm
Pneumatics:
6 bar
Consumption:
120 l/cycle
Electrical power:
230/400V III+N+T
Electrical consumption:
3 kW/h.
Chemical
Food
Pharmaceutical
Personal Care
