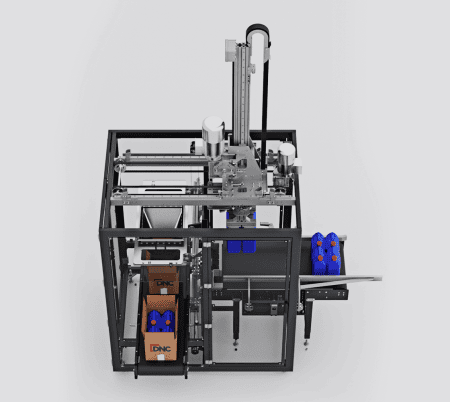

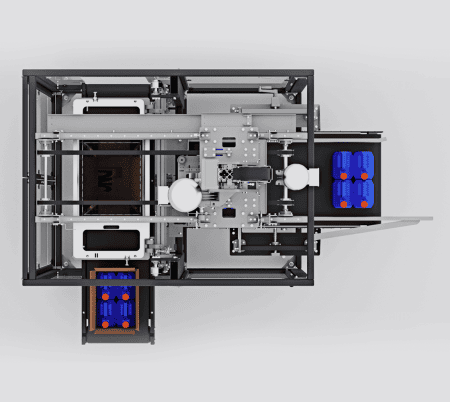

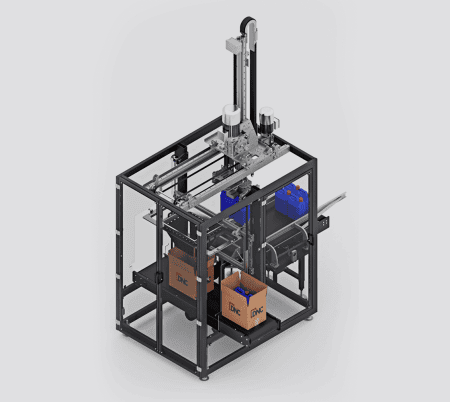

ZENIT Automatic Case Packer for Large Products
Ideal for packing both rigid and semi-rigid products, this machine is adaptable to suit any production line. This quick format change machine is usually found in small-medium production facilities.
8 Cycles/min
Maximum Production
Automatic
Operation Type
Rigid or Semi-Rigid
Product Suitability
Cardboard boxes and metal, plastic and cardboard trays.
Packaging Suitability
ZENIT Automatic Case Packer for Large Products
Machine Specifications
Explore the detailed specifications of our cutting-edge machinery.
Main Features
Options
Technical Specification
Packaging Types
Industries
Compatible with trays as well as boxes
Fast format change
Ideal for low-medium production requirements
Compact design
You can fill two or three boxes at a time
Quick head change
Vacuum layer head
Suction cup head
Gripper head
Quick change head
Double head
Servomotors
Adjustable working height
Maximum Output:
6 Cases/min
Maximum Output (with servomotors)
8 Cases/min
Maximum Case Size (formed, LxWxH):
650x410x400
Minimum Case Size (formed, LxWxH):
210x120x100 mm
Pneumatic pressure:
6 bar
Air consumption:
6 l/case
Power supply:
230/400V III+N+PE
Installed power:
4,80 kW
Max power consumption:
2,85 kWh
Machine Dimensions (LxWxH):
1750x1300x3800 mm
Weight:
Approximately 800 Kg
Working Height:
650-750 mm
Cardboard boxes
Metal containers
Plastic trays
Cardboard trays
Chemical
Food
Pharmaceutical
Personal Care
Automotive
Cosmetic
Drinks
Edible Oils
Home Care
