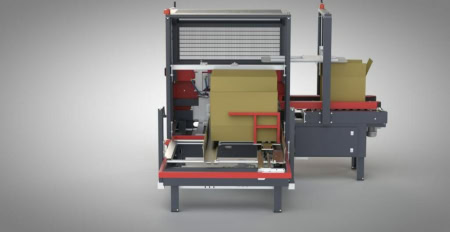

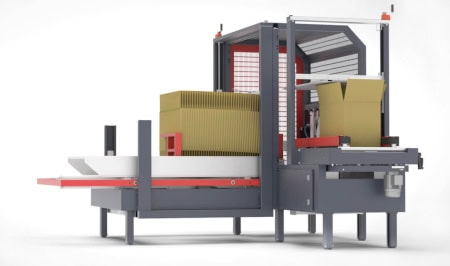

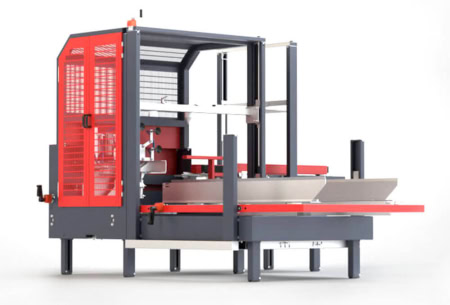

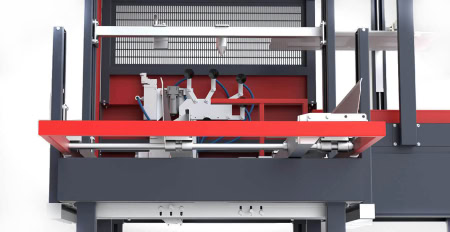

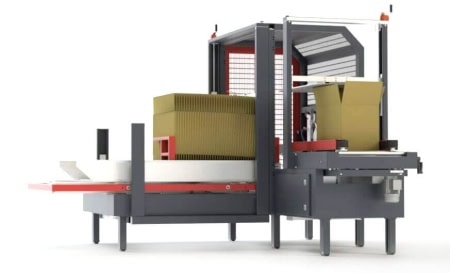

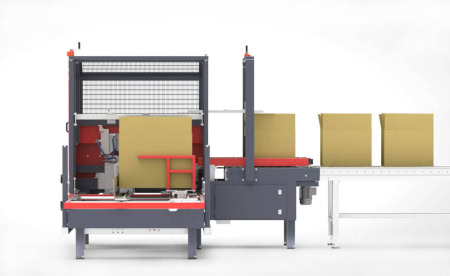

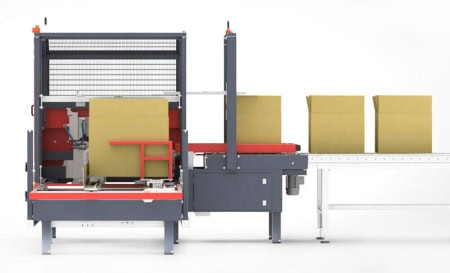

BE Automatic Case Erector for Large Boxes
The BE family of machines are designed for large cases with the BE2 for large cases increasing to the BE5 for XXXL cases. All models are robust and reliable, designed to work continuously.
17 Cases/min (BE2)
Maximum Production
RSC, HSC, 0200, 0201 Boxes
Packaging Suitability
Automatic
Operational Type
BE Automatic Case Erector for Large Boxes
Machine Specifications
Explore the detailed specifications of our cutting-edge machinery.
Main Features
Options
Technical Specification
Packaging Types
Industries
Fast and accurate format change
On-screen graphic help
Bottom closure of boxes with tape, gummed paper, or hot melt
Warehouse loading without stopping production
Manually adjustable to work with different formats
Designed to be integrated into production lines
Ideal for high production facilities
BE2 Model
BE3 Model
BE4 Model
BE5 Model
Variable working height
Adhesive tape sealing
Hotmelt glue sealing
Gummed paper sealing
Pneumatic Working Pressure:
6 Bar
Maximum Electrical Consumption:
1 Kw
Working Height:
550-750 mm
Magazine Capacity (configuration dependent)
150 units
Electrical Power:
230/400V III+N+T
BE2 Air Consumption:
30 l/cases
BE2 Maximum Output:
17 Cases/min
BE2 Dimensions (tape model, LxWxH)):
2410x1980x1742 mm
BE2 Weight (configuration dependent):
Approximately 375 Kg
BE2 Maximum Case Dimensions (Outter measurement, LxWxH)
450x310x500 mm
BE2 Minimum Case Dimensions (Outter measurement, LxWxH)
210x120x100 mm
BE3 Air Consumption:
30 l/cases
BE3 Maximum Output:
15 Cases/min
BE3 Dimensions (tape model, LxWxH)):
2537x2278x1781 mm
BE3 Weight (configuration dependent):
Approximately 425 Kg
BE3 Maximum Case Dimensions (Outter measurement, LxWxH)
650x410x600 mm
BE3 Minimum Case Dimensions (Outter measurement, LxWxH)
300x200x130 mm
BE4 Air Consumption:
40 l/cases
BE4 Air Consumption:
40 l/cases
BE4 Maximum Output:
12 Cases/min
BE4 Dimensions (tape model, LxWxH):
2637x2486x1981 mm
BE4 Weight (configuration dependent):
Approximately 575 Kg
BE4 Maximum Case Dimensions (Outter measurement, LxWxH)
750x510x650 mm
BE4 Minimum Case Dimensions (Outter measurement, LxWxH)
300x300x160 mm
BE5 Air Consumption:
40 l/cases
BE5 Maximum Output:
9 Cases/min
BE5 Dimensions (tape model, LxWxH):
2737x2836x1960 mm
BE5 Weight (configuration dependent):
Approximately 650 Kg
BE5 Maximum Case Dimensions (Outter measurement, LxWxH)
850x610x700 mm
BE5 Minimum Case Dimensions (Outter measurement, LxWxH)
400x300x200 mm
RSC (Regular slotted carton)
HSC (Half slotted container)
FEFCO 0200/0201
Tape, Hotmelt Glue, Gummed Paper Seals
Chemical
Food
Pharmaceutical
Personal Care
Automotive
Cosmetic
Drinks
Edible Oils
Home Care
